How to Choose the Best Clear Acrylic Tube in 2026?

Choosing the best clear acrylic tube in 2026 requires more than comparing prices and photographs. A reliable selection begins with the tube’s purpose, dimensions, and working environment. Will it carry light, display a product, protect a component, or guide airflow? Each use demands different wall thickness, diameter, and performance.

Look closely at optical clarity, surface finish, and dimensional tolerance. A good clear acrylic tube should appear even under bright inspection light. It should not show cloudy streaks, deep scratches, bubbles, or uneven edges. Ask the supplier for technical data, material grade, tolerances, and production details. Manufacturer experience matters, especially when tubes require cutting, drilling, bending, or bonding. Request a sample before placing a large order. Small tests can reveal stress cracks that online images hide.

Temperature and sunlight deserve attention. Acrylic offers useful clarity and weather resistance, but it is not indestructible. Excessive heat, harsh chemicals, or careless cleaning may cause warping or crazing. This is where many buyers make an avoidable mistake. They choose appearance first and performance later. Do not repeat it.

Check the inner diameter, outer diameter, length, and wall thickness with suitable measuring tools. Consider installation pressure, vibration, transport, and maintenance access. Independent reviews can help, but documented specifications should carry more weight. The cheapest option may become expensive after replacement, machining, or failed installation. Even experienced buyers occasionally overlook one measurement. Recheck everything. A thoughtful comparison will help you choose a clear acrylic tube that performs reliably, looks professional, and suits real-world conditions in 2026.

How to Choose the Best Clear Acrylic Tube in 2026?
Table of Contents [Hide]
1 What Is a Clear Acrylic Tube and How Is It Used?
2 Which Acrylic Tube Specifications Matter Most?
3 How to Compare Clarity, Strength, and Chemical Resistance
4 How to Select the Right Tube Size and Wall Thickness
5 How to Check Quality, Safety, and Supplier Reliability

What Is a Clear Acrylic Tube and How Is It Used?

How to Choose the Best Clear Acrylic Tube in 2026?

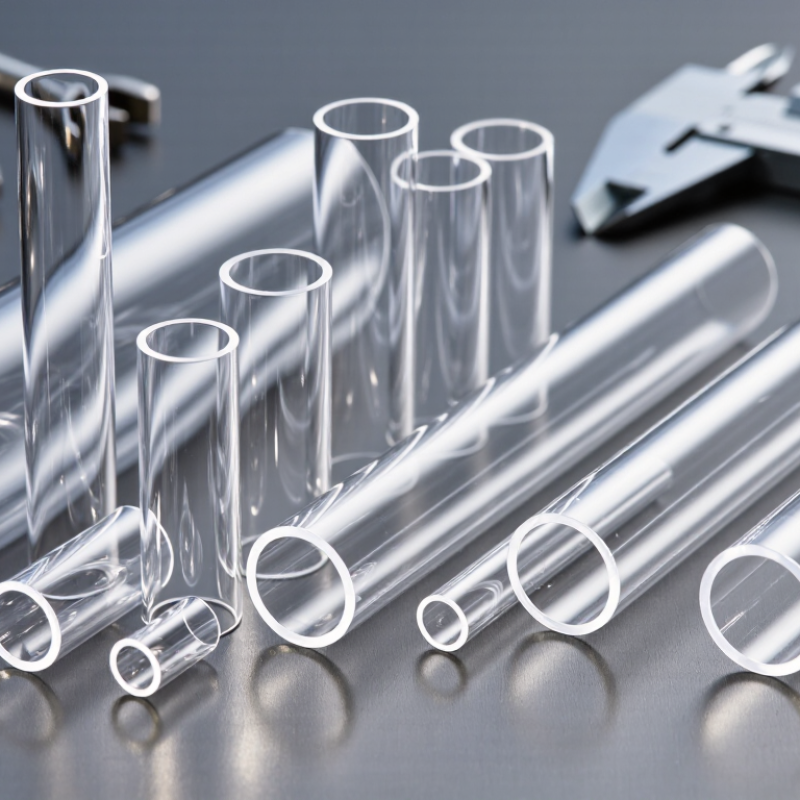

A clear acrylic tube is a hollow cylinder made from polymethyl methacrylate, commonly called PMMA. It looks like glass, but weighs much less and resists ordinary impacts better. Its transparency allows users to inspect contents, airflow, lighting, or moving parts without opening the assembly. The material also offers useful weather resistance, although outdoor performance depends on its grade and surface treatment.

These tubes appear in display cases, light diffusers, machine guards, laboratory prototypes, and educational equipment. Some are used for visible fluid movement, but they are not automatically suitable for pressure service. Check the manufacturer’s pressure data before enclosing liquid or gas. A tube can look strong while having thin walls. That is easy to overlook.

Choosing one requires more than measuring the outside diameter. Confirm the inside diameter, wall thickness, length tolerance, operating temperature, and exposure to sunlight or chemicals. Smooth ends matter when the tube must fit seals or connectors. Inspect the surface under bright light. Fine scratches may become obvious after installation, especially around strong lamps. Acrylic can also crack near poorly drilled holes or overtightened fittings. The compromise is real. Better clarity may mean less privacy, and thicker walls may reduce the visible opening. I would test a small section before ordering a large quantity, because specifications alone cannot reveal every machining problem.

How to Choose the Best Clear Acrylic Tube in 2026? - What Is a Clear Acrylic Tube and How Is It Used?

Typical reference data for general-purpose clear acrylic (PMMA) tubes. Actual values vary by tube size, manufacturing process, grade, temperature, and supplier.
Selection Dimension Typical Data or Range Recommended Choice Common Use or Benefit
Material Clear acrylic, also called polymethyl methacrylate (PMMA) Choose extruded PMMA for cost-efficient standard tubing; choose cast PMMA where higher optical quality or custom fabrication is needed. Transparent guards, display cylinders, light guides, laboratory equipment, and fluid-viewing systems.
Light transmission Approximately 92% for clear, polished acrylic sheet; tube transmission depends on wall thickness and surface finish. Use optically clear tubing when visibility, illumination, or inspection is important. Excellent visual inspection and light transmission with low visual distortion when properly manufactured.
Outside diameter (OD) Common commercial sizes range from small laboratory diameters to large display or industrial diameters; exact availability varies by supplier. Select the OD based on the supporting frame, fittings, clamps, and required internal capacity. Controls system fit, structural clearance, and compatibility with connectors.
Inside diameter (ID) ID is calculated as: ID = OD − 2 × wall thickness. Specify the required ID first when the tube must accommodate fluid flow, cables, rods, or another component. Determines usable internal space and affects flow rate and insertion clearance.
Wall thickness Typical products are available with thin, medium, or heavy walls; pressure capability increases with wall thickness but must be verified by engineering calculations. Choose a thin wall for lightweight covers and displays; choose a thicker wall for stiffness, impact resistance, or larger diameters. Balances weight, rigidity, optical path length, machining allowance, and cost.
Density Approximately 1.18 g/cm³ at room temperature. Use acrylic when lower weight than glass is valuable and extreme impact performance is not required. Easier handling and installation than glass in many display and protective applications.
Temperature capability Typical continuous-use guidance is about 70–80°C, depending on grade, load, and exposure time. Use acrylic for ambient or moderately warm environments; select another material for sustained high heat. Suitable for room-temperature enclosures, displays, and many non-heated fluid-viewing systems.
Mechanical strength Typical tensile strength is approximately 65–75 MPa; values depend on grade and test method. Use thicker walls and adequate supports for structural applications; do not assume tubing is pressure-rated. Provides good stiffness and dimensional stability for covers, guards, and non-pressurized assemblies.
Impact resistance Acrylic is more brittle and generally less impact-resistant than polycarbonate. Choose acrylic for clarity and surface appearance; consider polycarbonate for high-impact safety requirements. Helps prevent selecting acrylic for applications involving repeated blows, vandalism, or ballistic hazards.
Weather and UV exposure Acrylic generally offers good outdoor weatherability and UV stability, but additives and surface finish affect long-term performance. Select an outdoor-rated grade for prolonged sunlight, temperature cycling, or exterior installation. Outdoor displays, lighting covers, protective housings, and architectural components.
Chemical compatibility Generally compatible with water and many mild aqueous solutions; vulnerable to solvents such as acetone and some aromatic or chlorinated solvents. Check a chemical-resistance chart and conduct compatibility testing before use with chemicals, cleaners, or fuels. Reduces the risk of crazing, softening, clouding, or cracking during service.
Pressure and vacuum use Clear acrylic tube should not be treated as pressure-rated without documented calculations, testing, and an appropriate safety factor. Use primarily for non-pressurized viewing, containment, or shielding unless the product is specifically engineered and certified. Supports safer design decisions for sight glasses, process windows, and fluid systems.
Fabrication and finishing Can be cut, drilled, machined, polished, thermoformed, and solvent-bonded with suitable procedures. Request cut-to-length, polished ends, drilled holes, flanges, or bonded components when installation accuracy matters. Enables customized displays, guards, prototypes, manifolds, and laboratory assemblies.
Best application match High transparency, moderate stiffness, low-to-moderate temperature, and non-pressurized service. Choose clear acrylic tube when optical clarity, appearance, weatherability, and easy fabrication are priorities. Display columns, aquarium components, LED light diffusers, protective sleeves, laboratory apparatus, cable covers, and fluid-viewing sections.
2026 Selection Reminder: Confirm the exact dimensions, tolerance, transparency requirement, temperature range, chemical exposure, impact risk, and pressure conditions before ordering. Clear acrylic tube is generally intended for visual access and protection rather than unverified pressure service.

Which Acrylic Tube Specifications Matter Most?

How to Choose the Best Clear Acrylic Tube in 2026?

Which Acrylic Tube Specifications Matter Most?

Clear acrylic tube selection starts with dimensions, not appearance. Measure the outside diameter, inside diameter, wall thickness, and usable length. A tube listed as 50 mm wide may vary slightly by production tolerance. That difference can affect fittings, airflow, and assembly. For a snug insert, check the actual inside diameter with a calibrated caliper. Small errors matter.

Wall thickness determines strength, weight, and visual proportion. Thin walls suit display covers and lightweight guards. Thicker walls provide better rigidity for supports and longer spans. However, acrylic can crack around drilled holes, especially near edges. I once selected a tube by outside diameter alone, then found the internal opening too narrow for the connector. The mistake was simple, but costly.

Optical clarity is only one specification. Review transparency, haze, surface finish, and color consistency under direct light. Ask for ultraviolet resistance when the tube will sit near windows or outdoor equipment. Check the working temperature range and chemical compatibility before use. Acrylic tolerates many common environments, but heat, solvents, and sudden impacts can cause stress cracks. Do not assume “clear” means pressure-safe. Acrylic tubes are generally better for visible structures than high-pressure systems. Request tolerance data, test samples, and material documentation from the supplier. A sample may reveal scratches, uneven ends, or distortion that a specification sheet misses.

How to Compare Clarity, Strength, and Chemical Resistance

How to Choose the Best Clear Acrylic Tube in 2026?

Clarity is the first visual test, not the final decision. Typical PMMA data show about 92% visible-light transmission for clear acrylic. ASTM D1003 measures haze and luminous transmittance under controlled conditions. Ask suppliers for test values, not only words like “optical grade.”

A tube may look brilliant under showroom lighting, yet show haze after machining. Check the cut edge, wall uniformity, and internal stress marks. Small bubbles matter in laboratory viewing applications.

Strength requires a different comparison. Representative PMMA tables report tensile strength near 65–75 MPa, commonly measured by ASTM D638. However, thin walls, drilled holes, and cold temperatures can reduce practical performance.

A thicker tube is not automatically safer. Calculate load, support spacing, impact risk, and operating temperature.

Chemical resistance is more complicated. ASTM D543 testing evaluates exposure effects, but no single result covers every chemical or concentration. Acrylic generally handles water and many mild detergents, while strong solvents, aromatic hydrocarbons, and some alcohol mixtures may cause crazing.

Test a small offcut first. It is easy to underestimate stress cracking.

Use documented immersion time, temperature, and concentration. ISO 4892-2 can help assess accelerated light exposure, but laboratory aging is not outdoor reality.

I would record gloss, haze, dimensions, and cracks before and after testing.

Some specifications remain incomplete. That deserves a second question, not automatic trust.

How to Select the Right Tube Size and Wall Thickness

How to Choose the Best Clear Acrylic Tube in 2026?

How to Select the Right Tube Size and Wall Thickness

Choosing the best clear acrylic tube in 2026 starts with two measurements: inside diameter and wall thickness. The correct size depends on what the tube must hold, protect, or allow to pass through. Measure the working object at its widest point, including fittings and movement space. Add small clearance, but do not guess generously. Too much space can cause rattling, poor sealing, or unstable alignment. In my workshop, I measure the actual part twice because drawings often miss small projections. Measure carefully.

For a sleeve, compare the tube’s inside diameter with the component’s outside diameter. A difference of 1–3 millimeters may suit light applications, but moving parts often need more clearance. Heat can expand different materials at different rates, so check operating temperatures before ordering. Acrylic is rigid and transparent, yet it can crack under uneven pressure. If the tube will be clamped, leave room for soft pads or use broad supports. A narrow clamp mark can become a visible fracture.

Wall thickness should match load, length, handling, and drilling needs. Thin walls reduce weight and cost, but they flex more easily and offer less thread depth. Thicker walls improve stiffness and impact tolerance, although they add weight and reduce internal space. For long spans, support spacing matters as much as thickness. I once selected a wall that seemed strong enough, but the unsupported center sagged slightly. That mistake changed the final size. Check dimensional tolerances, edge finish, and a sample under real conditions. Clear plastic can hide stress until failure.

How to Choose the Best Clear Acrylic Tube in 2026?

Select the tube size by checking the required inner diameter first, then choose a wall thickness that provides enough rigidity for the application. The chart shows the calculated clear inner diameter for common outer diameters and three practical wall thickness options.

Inner diameter is calculated as outer diameter − 2 × wall thickness. A 2 mm wall is suitable for lightweight covers and display applications, while 3–5 mm walls provide greater rigidity and impact resistance. Confirm pressure, temperature, UV exposure, and installation requirements before final selection.

How to Check Quality, Safety, and Supplier Reliability

How to Choose the Best Clear Acrylic Tube in 2026?

Choosing the best clear acrylic tube in 2026 starts with measurable quality, not a glossy product image. Ask for the acrylic grade, outside diameter, wall thickness, and tolerance range. A reliable supplier should provide a current technical data sheet and a sample for inspection. Hold the tube against a straight edge. Look for even transparency, smooth cuts, and no bubbles, cloudy patches, or stress marks. Measure several points with calipers, because one accurate end can hide uneven production.

Safety depends on the intended use. Confirm temperature limits, chemical resistance, UV performance, and load requirements before ordering. Do not assume “clear” means impact-proof or suitable for food contact. Request relevant test reports, material declarations, and traceable batch information. For a display tube, small scratches may be acceptable. For a protective enclosure, they may weaken visibility and confidence. I once focused too much on appearance and overlooked the fit between the tube and fittings. That mistake caused unnecessary rework. Good checking includes the parts around the tube.

Supplier reliability appears in communication and consistency. Ask how defects are handled, how samples match mass production, and how packaging prevents cracks. A dependable contact answers specific questions without vague promises. Check production lead times, inspection records, and replacement terms in writing.

Order a small trial batch first. It costs more initially. However, it reveals cutting accuracy, labeling, packing quality, and response speed. Keep photos and measurements from the inspection. They create useful evidence when expectations differ. No supplier is perfect. A supplier willing to admit limits may be safer than one claiming flawless results.
